Gate your connector operations with tags

· 6 min read
Sebastian Morandin
Sebastian Morandin
Software Senior Principal Engineer

Ever needed to show certain operations only to specific connector instances? As a connector developer, you often need to control which operations are available — based on the connector instance a user is working with. Maybe you have standard and advanced operations in the same connector, and you want to gate the advanced ones behind a specific configuration. Or perhaps you're building a connector family where different editions expose different capabilities.

Connector tagging gives you exactly this control. By declaring tags on operations in your connector descriptor and assigning tags to connector instances via the ConnectorMetadata API, you can dynamically show or hide operations based on the tags present on a given connector.

What are connector tags​

Connector tags are string labels you assign to a connector instance (a specific connector type deployed on the Platform). Operations in your connector descriptor can declare which tags they require using the <availableForTags> element. When a user configures a connector shape in a process, only operations whose required tags match the connector instance's tags are displayed.

The key principle: if a connector instance has at least one tag matching an operation's declared tags, that operation becomes available.

Operations without <availableForTags> are always visible, regardless of what tags the connector has.

Scope

Tags are supported only at the operation level.

Declaring tags in the descriptor​

Here's how you wire up a gate operation in the descriptor. Add <availableForTags> inside an <operation> element in your connector-descriptor.xml. Each <value> is a tag string that the connector instance must have.

Sample connector-descriptor.xml
<GenericConnectorDescriptor requireConnectionForBrowse="true">

  <!-- Connection fields — always visible, unaffected by tags -->
  <field id="url"    label="URL"      type="string"   />
  <field id="apiKey" label="API Key"  type="password" />

  <!-- Standard operations — always available to every instance -->
  <operation types="GET"
              customTypeId="regular_get"
              customTypeLabel="Regular Operation">

  <!-- Gated: only visible when the instance has the "legacy" tag -->
  <operation types="EXECUTE"
             customTypeId="legacy_import"
             customTypeLabel="Legacy Operation">
    <availableForTags>
      <value>legacy</value>
    </availableForTags>
  </operation>

  <!-- Gated: visible when the instance has "advanced" OR "beta" tag -->
  <operation types="EXECUTE"
             customTypeId="beta_run_report"
             customTypeLabel="Beta Operation">
    <availableForTags>
      <value>advanced</value>
      <value>beta</value>
    </availableForTags>
  </operation>

</GenericConnectorDescriptor>

A few rules to keep in mind:

  • <availableForTags> must contain at least one <value> — an empty element is invalid.
  • Tag values are plain strings. Lowercase hyphenated names (beta, legacy, advanced, enterprise-tier) keep descriptors readable.

Assigning tags via the Connector Metadata API​

Once you have an operation with <availableForTags> declared within it, assign the corresponding tag to your connector instance via the ConnectorMetadata API.

important

  • Before you make any calls, check the Prerequisites in the ConnectorMetadata API reference.

  • HIDDEN connectors are not supported by the ConnectorMetadata API.

Assigning tags​

To assign tags, POST the following to the ConnectorMetadata endpoint:

Sample POST request
POST https://api.boomi.com/connector/api/rest/v1/{accountId}/ConnectorMetadata

{
  "classificationType": "myaccount-myconnector",
  "metadata": {
    "displayName": "My Connector",
    "connectorTags": {
      "tags": [
        {
          "name":        "beta",
          "description": "Enables beta operations"
        },
        {
          "name":        "enterprise",
          "description": "Enables enterprise reporting operations"
        }
      ]
    }
  }
}

The classificationType is the unique identifier for your connector type — find it in the Developer tab under the Connectors table.

Critical

Tags are replaced entirely with each request:

  • To add a tag, include all existing tags plus the new one.
  • To remove all tags, send "tags": [].
  • To leave existing tags unchanged, omit the connectorTags field entirely.

Retrieving current tags​

To check what tags are currently assigned to your connector instance, make a GET request:

Sample GET request
GET https://api.boomi.com/connector/api/rest/v1/{accountId}/ConnectorMetadata/{classificationType}

{
  "@type": "ConnectorMetadata",
  "classificationType": "myaccount-myconnector",
  "metadata": {
    "displayName": "My Connector",
    "connectorTags": {
      "tags": [
        {
          "@type":       "ConnectorTag",
          "name":        "beta",
          "description": "Enables beta operations"
        },
        {
          "@type":       "ConnectorTag",
          "name":        "enterprise",
          "description": "Enables enterprise reporting operations"
        }
      ]
    }
  }
}

Private vs. public connectors​

Private connectors are visible only to your own account — typically, connectors you're developing or using internally. Tag changes on private connectors take effect immediately; the response returns reviewStatus: APPROVED.

Public connectors are published in the Boomi connector catalog and are available to all customers. Because a tag change affects the feature surface of a connector that others rely on, updates go through a review process and return reviewStatus: PENDING until approved. Only one pending request is allowed at a time. If you need to revise your request before it's reviewed, cancel it first, and then submit your updated request normally:

POST https://api.boomi.com/connector/api/rest/v1/{accountId}/ConnectorMetadata/delete

What you can build with this​

Here are a few examples of what you can do with connector tagging:

Use case 1: Tiered feature sets​

Keep separate connector editions in the same connector group. It is the pattern behind Boomi's Standard and Enterprise connector tiers: both share a single codebase, but the Enterprise connector type carries an enterprise tag that unlocks the advanced operations declared in the descriptor. Standard instances see only the baseline; Enterprise instances see everything.

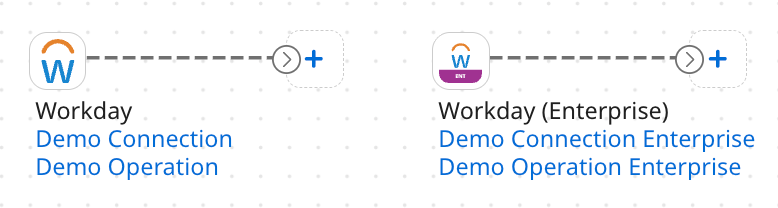

Tiered feature sets

Use case 2: Progressive rollout​

Roll out a new operation without updating the entire connector. Say the API you're integrating with isn't fully released yet. Stage the operation behind a tag, enable it when the target system is ready, and remove it quickly if you find issues — all without touching your users' runtimes.

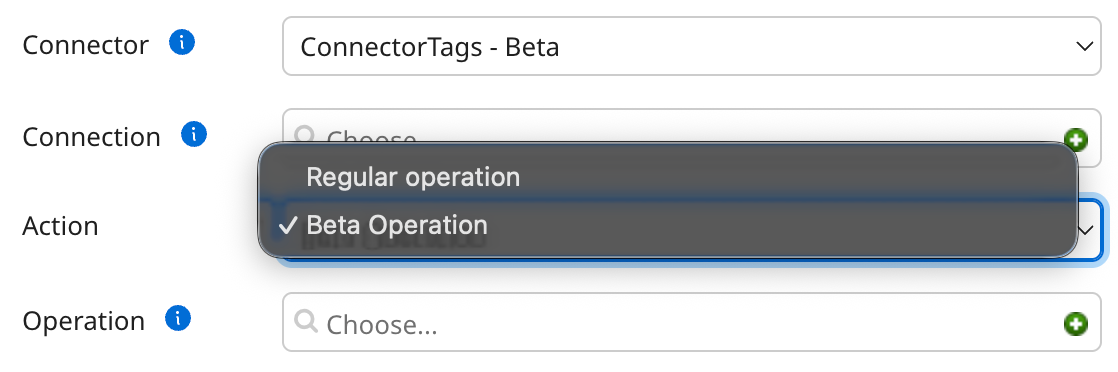

Progressive rollout

Use case 3: Graceful deprecation​

Require a legacy tag on a connector operation you're retiring. It remains available to the existing connector editions that carry the tag, but disappears for new editions.

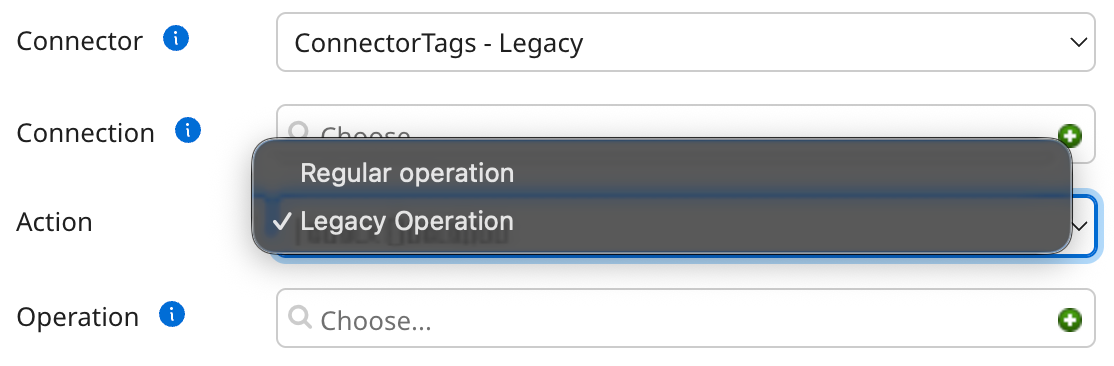

Graceful deprecation

In the progressive rollout and graceful deprecation examples, the regular connector exposes only the regular operation:

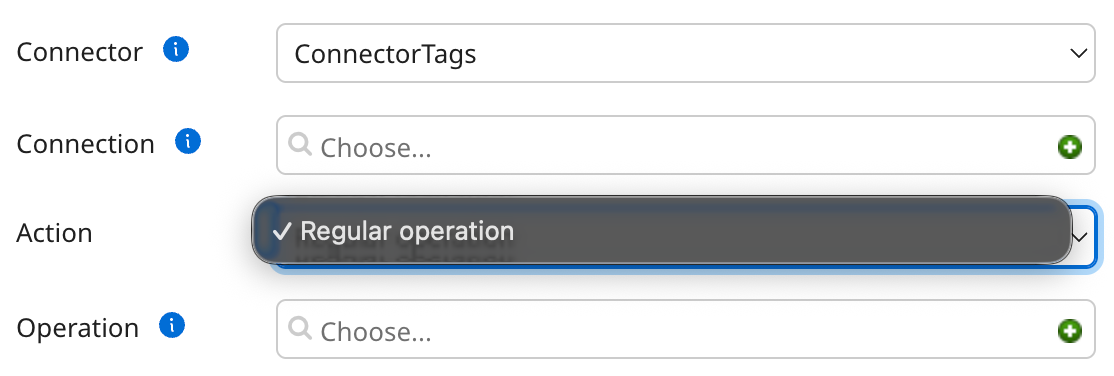

Regular operation

And in the connector group, all three connectors share the same version:

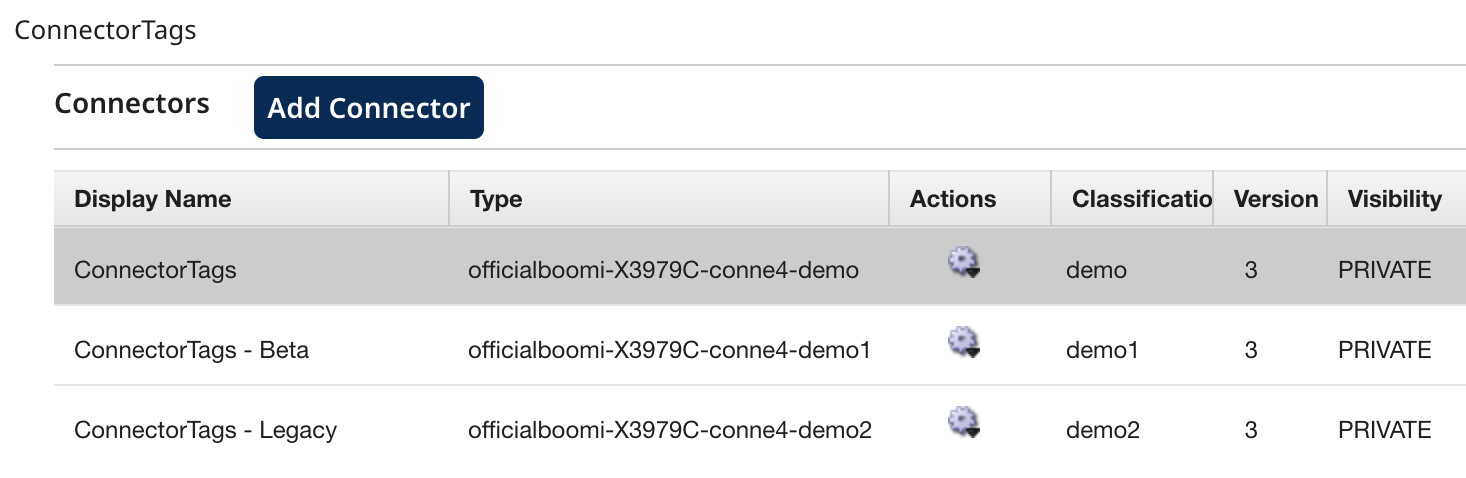

Connector group

Compatibility with existing components​

When you remove a tag from a connector instance, any operations that required it are hidden from the UI for future configuration — but existing deployed processes continue to run without interruption. The Platform marks those operations as "no longer available" to prevent new configuration while preserving existing behavior.

Ready to try it out? Add <availableForTags> to your descriptor, assign a tag via the API, and see what your connector shows — or doesn't. If you want to go deeper on connector configuration, check out:

Give tagging a try and let us know how it goes!
