Create a custom Platform Type

Before you can run your custom agent, you must create a custom Platform Type in API Control Plane. The Platform Type tells API Control Plane which implementation to load and what configuration fields to display during gateway registration.

Prerequisites​

  • Agent plugin JAR compiled (see Compile the agent plugin)
  • Access to API Control Plane with permissions to create Platform Types

Create the Platform Type​

  1. In API Control Plane, select Configuration > Custom Platform Types > Add Custom Platform Type.

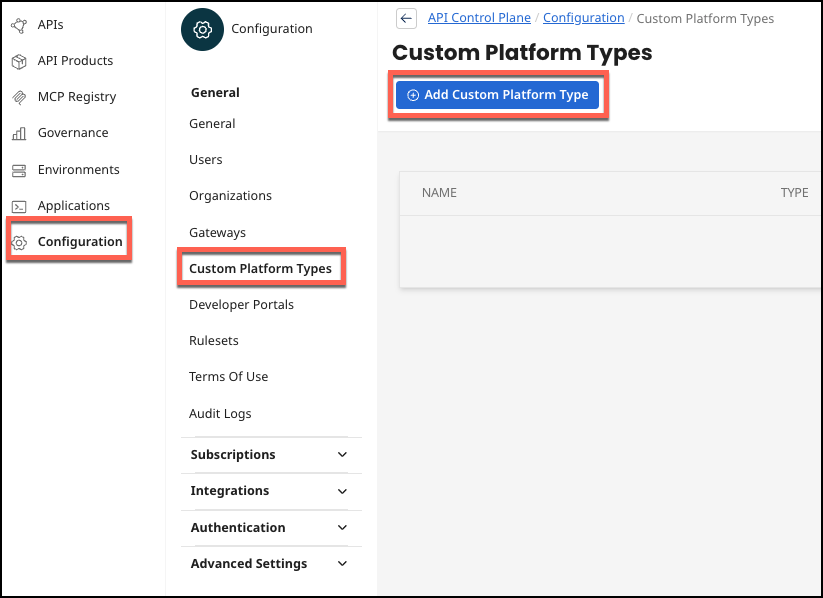

    API Control Plane image that shows the path to the custom platform types

  2. Upload JSON file. Ensure that the type field of the custom Platform Type exactly matches the string supported in your implementation of GatewayConfigurationFactory::supports. Ensure that the fields needed for your GatewayConfiguration are included in the json uploaded to set the properties of the Platform Type, e.g. for a "password" field in your GatewayConfiguration subclass, {"fieldName":"password"} should be included in your properties json.

note

You can also include a description for each field in your properties json, such as {"fieldName":"password", "description":"string used to authenticate user"}. This description is used as the tooltip for this field on the gateway registration UI.

These are the properties that will be included in docker-compose.yml file and read by the GatewayConfigurationFactory::parseConfiguration method on startup. Ensure that your GatewayConfiguration subclass has all the fields needed to implement connectivity to your gateway.

Example properties JSON:

{
  "type": "EXAMPLE",
  "properties": [
    {"fieldName": "username", "description": "identifier used for gateway access"},
    {"fieldName": "password", "description": "secret code used to authenticate user"}
  ]
}

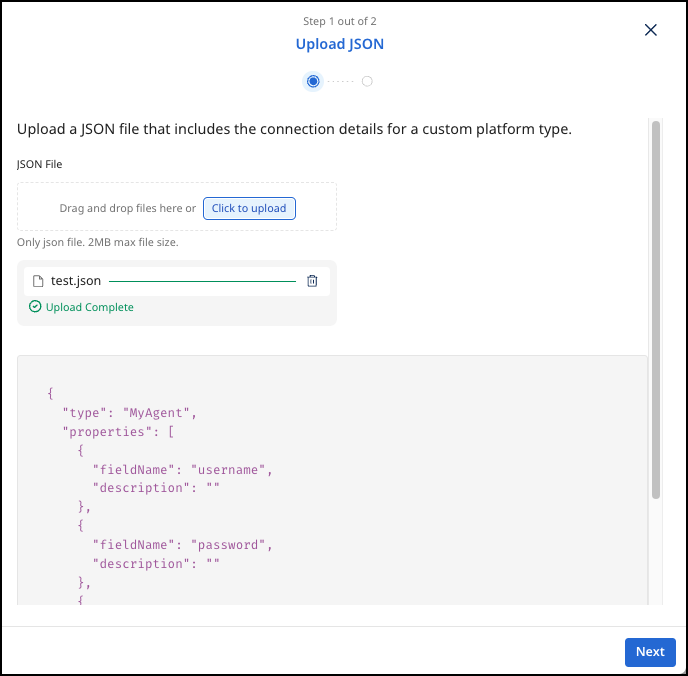

API Control Plane dialog that contains an option to upload your JSON file

  1. Select Next.
  2. Add an image for the new platform type: .png, .jpg, or .gif, and 2MB maximum file size. Select Add and Connect Gateway or Add Platform Type if you don't want to connect.

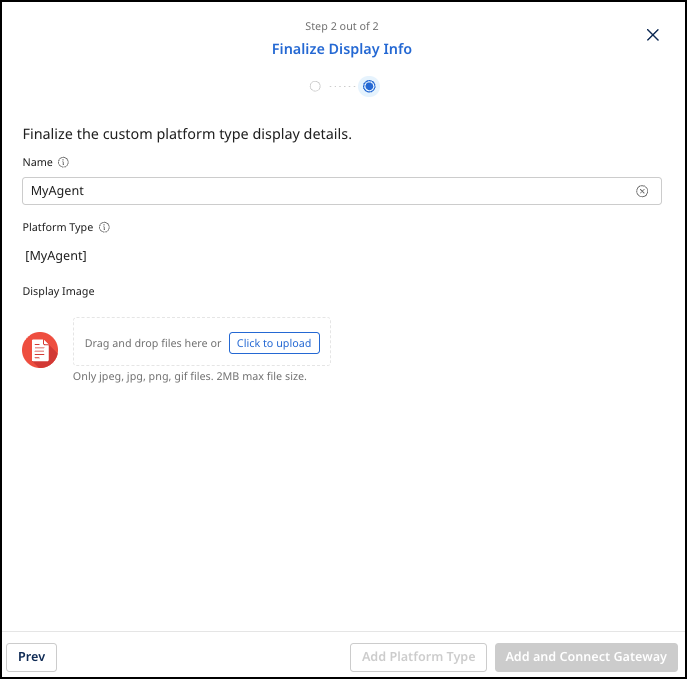

API Control Plane dialog that contains options to add a display image

Configuration reference​

FieldDescriptionRequired
typeThe string identifier for this Platform Type. Must match the value returned by GatewayConfigurationFactory::supports.Yes
fieldNameThe name of a configuration field in your GatewayConfiguration subclass.Yes
descriptionTooltip text shown to users when they enter a value for this field during gateway registration.No
